Solar Panel:

1. Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.

2. Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa).

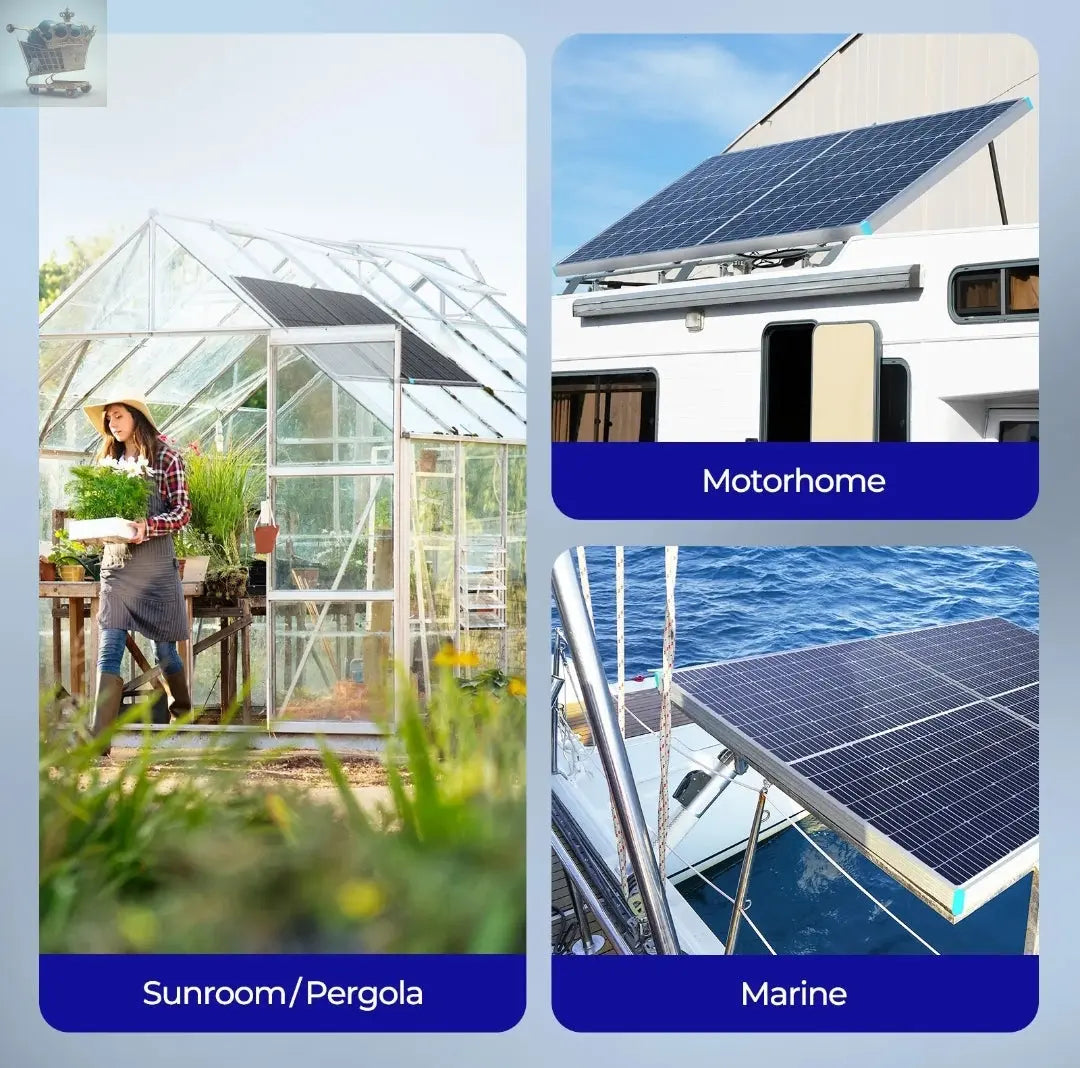

3. Can be used for many different applications.

4. Pre-drilled holes on the back of the panel allow for fast mounting and securing.

100W SPECIFICATIONS

Maximum Power at STC: 100W Cell Efficiency: 22%

Optimum Operating Voltage (Vmp): 20.4V Open-Circuit Voltage (Voc): 24.3V

Optimum Operating Current (Imp): 4.91A Short-Circuit Current (Isc): 5.21A

Operating Temperature: -40°F to 176°F Maximum Series Fuse Rating: 15A

Maximum System Voltage: 600V DC (UL) Certifications: CE, ISO

Weight: 14.1 lbs/6.4 kg Dimensions: 41.8 x 20.9 x1.4 in(106.2 x 53.0 x3.5 cm)

Certifications: CE, ISO

175W SPECIFICATIONS

Max Power at STC: 175W Open Circuit Voltage: 21.6V

Short Circuit Current: 10.31A Opitmum Operating Voltage: 18.1V

Optimum Operating Current: 9.67A Operating Temperature: -40°F to 194°F (-40°C to 90°C)

Maximum System Voltage: 1000VDC UL Maximum Series Fuse Rating: 15A

Cables: 14 AWG 2.5ft long Dimensions: 49.7 x 27.5 x 1.38 in (1262 x 699 x 35 mm)

Weight: 22 lbs (9Kg) Solar Cells: 32 Monocrystalline Cells

Junction Box: IP65 Connectors: Solar Connectors

Module Efficiency: 19.80%
